POWER SUPPLY

• ◆ AC100V-250V,50/60Hz

• ◆ Power 30W

OPTICS

• ◆ Laser: 1800mW@525nm  green laser;

•              1500mW@638nm  red laser;

•              3000mW@450nm  bule laser

• ◆ Colour spectrum: RGB

• ◆ Scanner:30kpps

• ◆ Wavelength: 532nm green, 650nm red, 450nm blue

• ◆ Laser sources: Semiconductor pumped all solid state laser

FEATURES

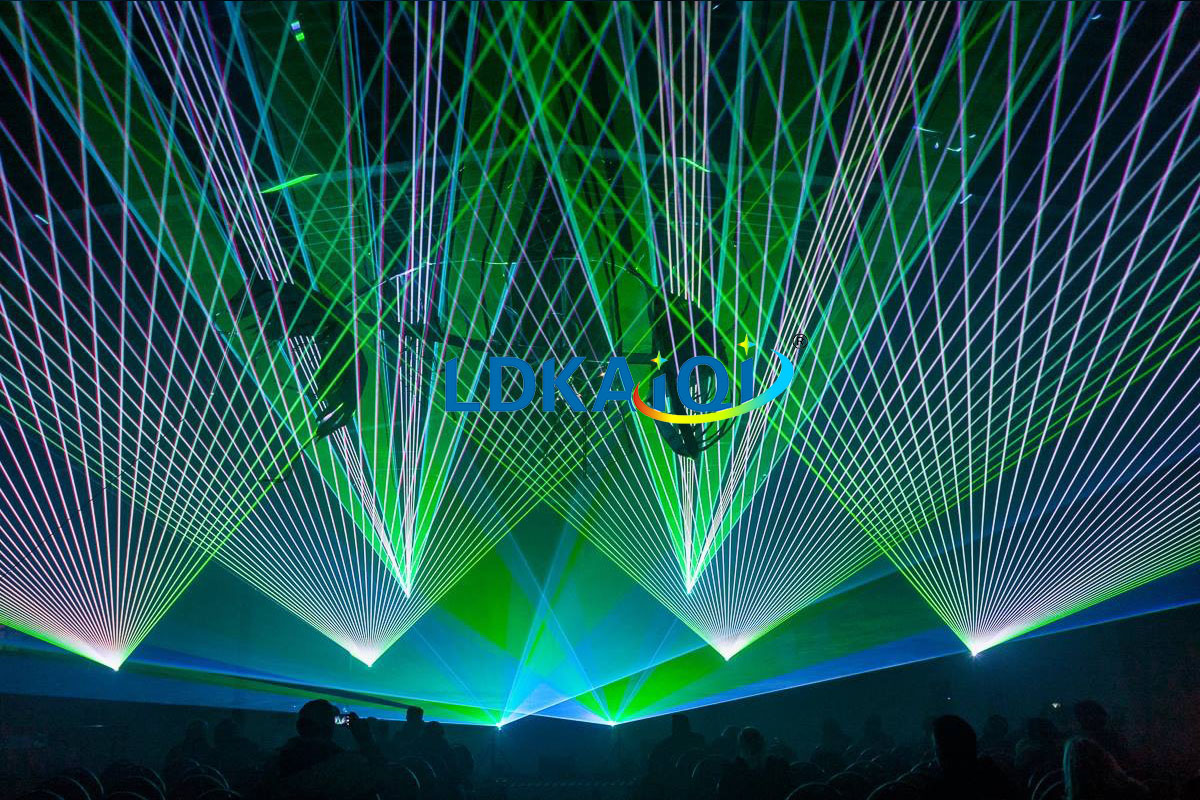

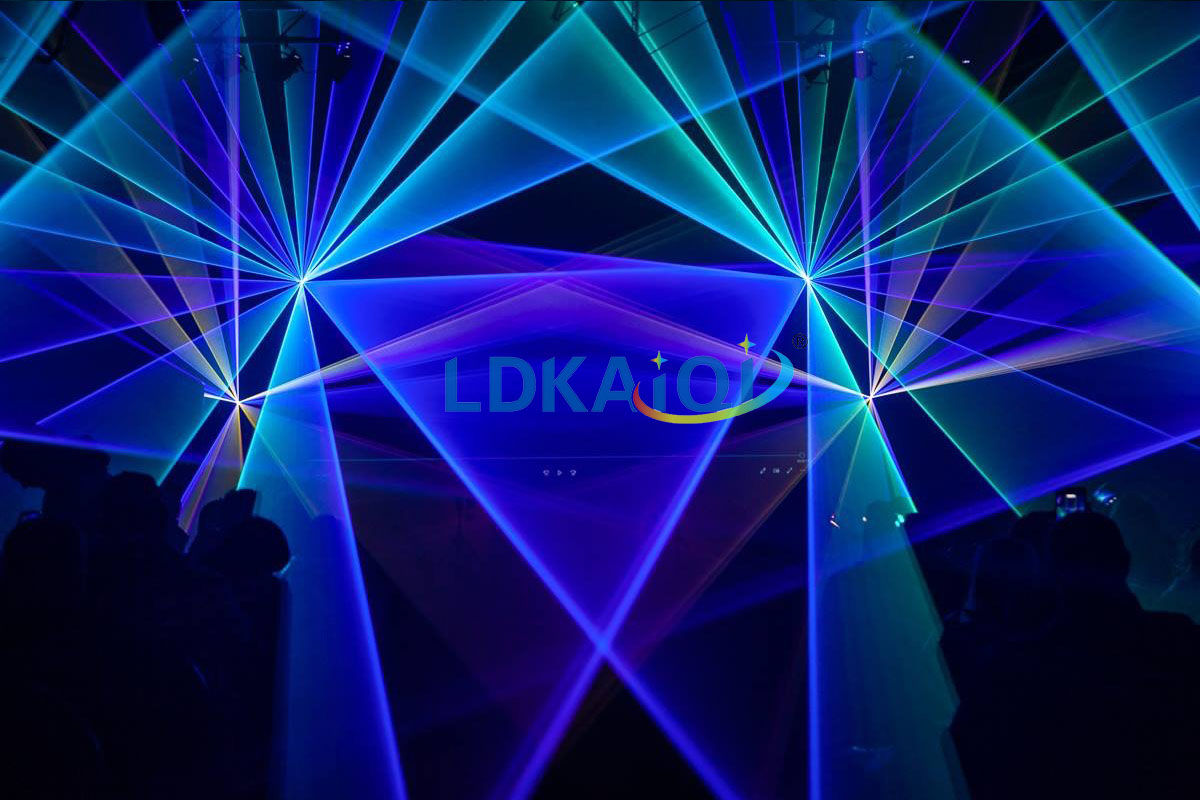

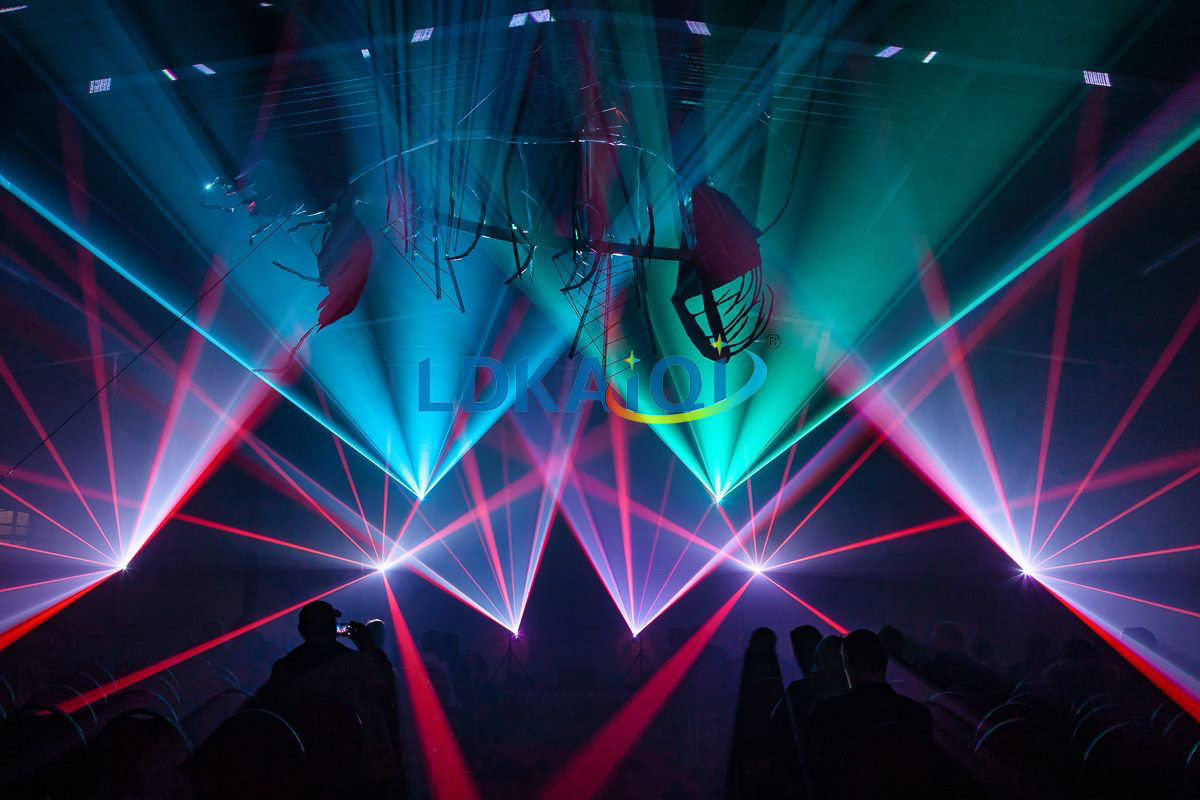

• ◆ RGB color animation laser with high-speed optical scanner to create animated graphics

• ◆ 128 beam and graphics show patterns, and with the function of unique blanking, frequently flashing

• ◆ rotating,movement, billowing, zoom (+/-), drawing, speed and color, etc

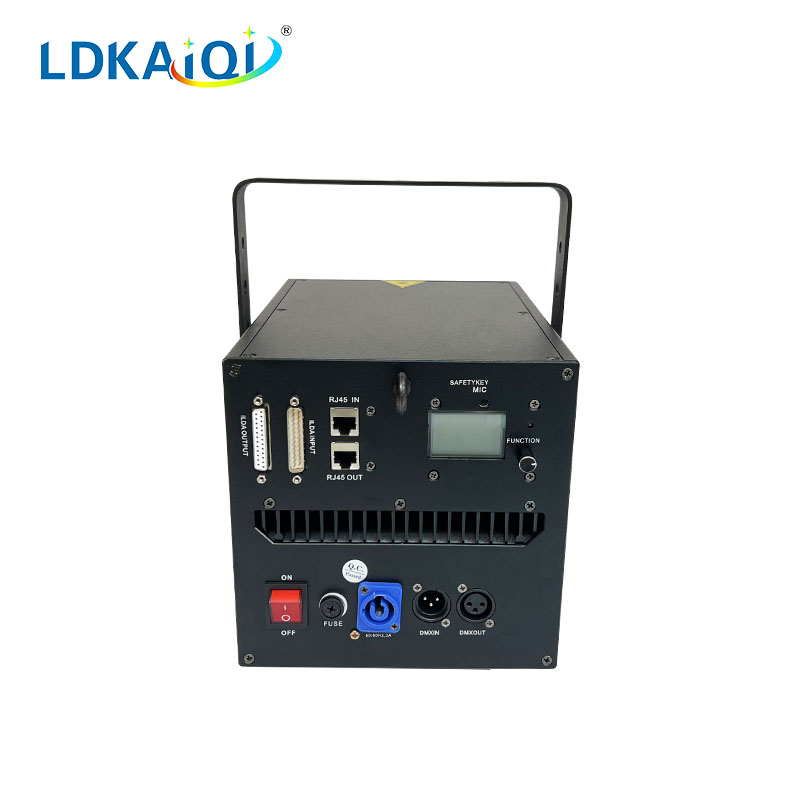

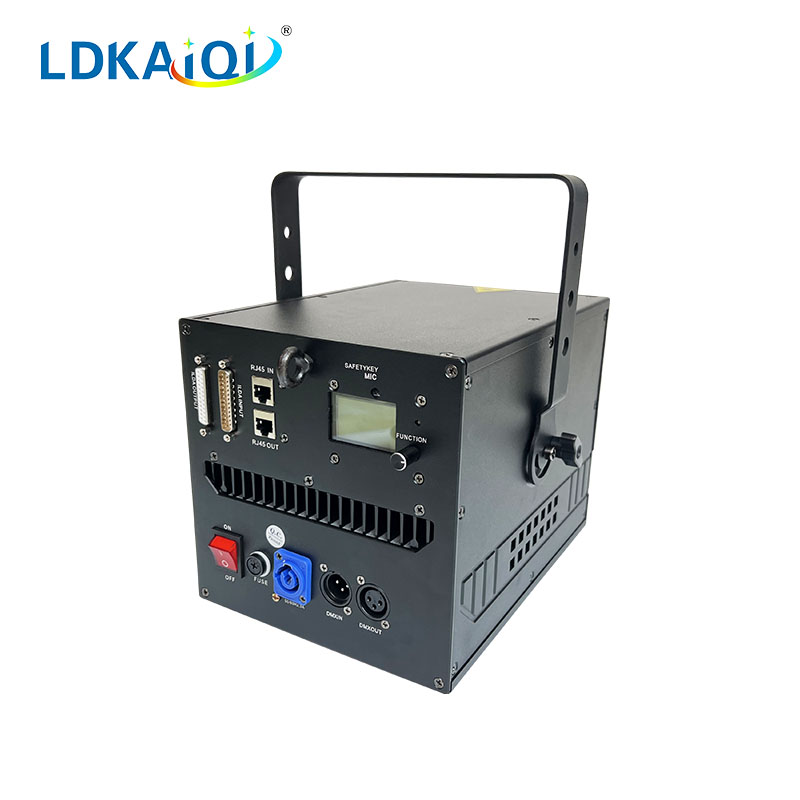

CONTROL

• ◆ Channels: 18CH

• ◆ DMX input: XLR 3-pin male

• ◆ DMX output: XLR 3-pin female

• ◆ ILDA input: 25-pin Sub-D male

• ◆ ILDA output: 25-pin Sub-D female

• ◆ Standard control signal: DMX512

• ◆ Control mode: international standard DMX512, automatic,Sound Active, Master-slave control and ILDA control

• ◆ Surface: aluminium

• ◆ Color: black

• ◆ IP Rating: IP20

SIZE

• ◆ Size: 380*280*350mm/pc(carton);

•            550*380*390mm/2pcs(carton)

WEIGHT

• ◆ Net Weight:7.5kg

• ◆ Gross Weight: 8kg/pc(carton); 17kg/2pcs(carton)
