MODEL
| |
POWER SUPPLY | ◆ AC100V-250V,50/60Hz ◆ Power 30W
|
OPTICS | ◆ Laser: 10000mW green, 8000mW red, 12000mW blue ◆ Colour spectrum: RGB ◆ Scanner:30kpps ◆ Wavelength: 650nm Red Laser,532nm Green Laser,450nm Blue laser ◆ Laser sources: Semiconductor pumped all solid state laser
|
FEATURES | ◆ RGB color animation laser with high-speed optical scanner to create animated graphics ◆ 128 beam and graphics show patterns, and with the function of unique blanking, frequently flashing ◆ rotating,movement, billowing, zoom (+/-), drawing, speed and color, etc
|

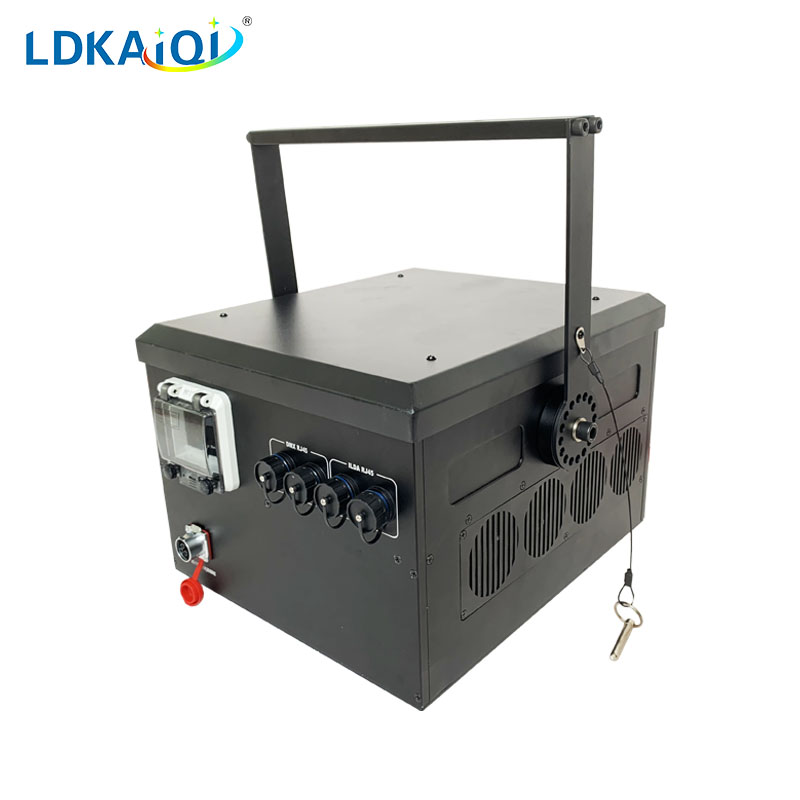

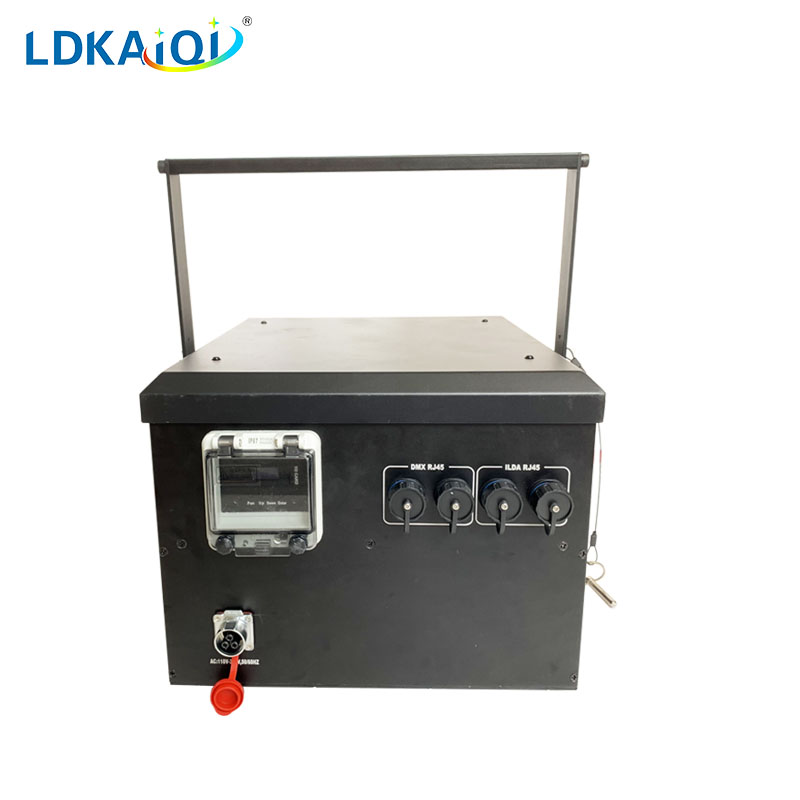

CONTROL | ◆ Channels: 17CHs ◆ DMX input: XLR 3-pin male ◆ DMX output: XLR 3-pin female ◆ ILDA input: 25-pin Sub-D male ◆ ILDA output: 25-pin Sub-D female ◆ Standard control signal: DMX512 &ILDA ◆ Control mode: Auto mode Sound mode DMX .mode Ilda mode
|
HOUSING | ◆ Surface: aluminium ◆ Color: black ◆ IP Rating: IP65
|
SIZE | |
WEIGHT | ◆ Net Weight:30.5kg ◆ Gross Weight: 44.4kg
|
