POWER SUPPLY

• ◆ AC100V-240V/50-60Hz

• ◆ Power 260W

OPTICS

• ◆ Led: 230W High Output White LED

• ◆ Average lifetime: 50,000 hour

• ◆ Beam angle: 11-25 degrees

MOVEMENT

• ◆ Scanning speed: X 540 degrees, Y  270 degrees

COLORS/GOBOS

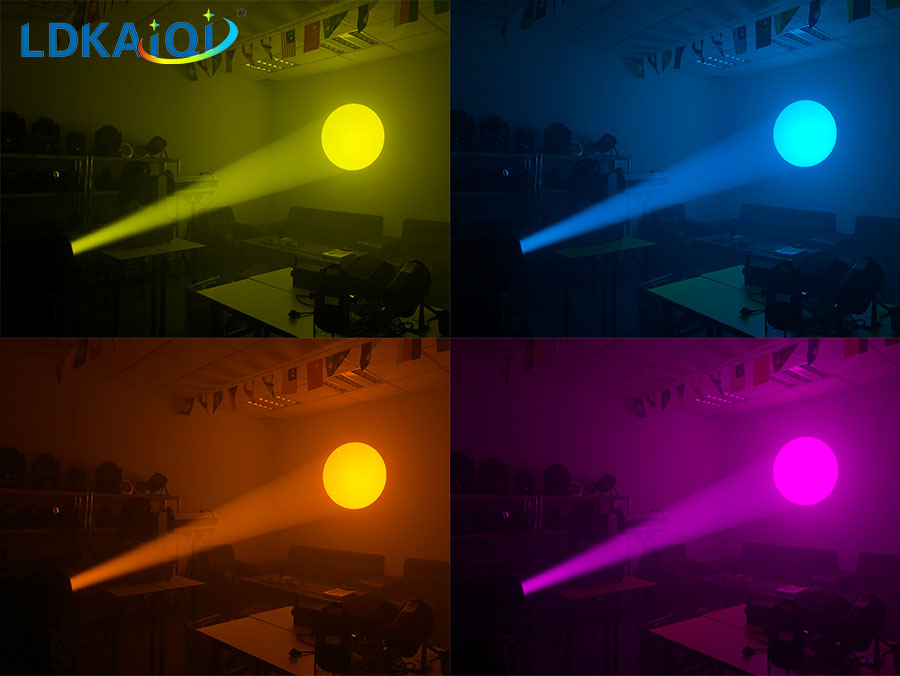

• ◆ Color wheel: 7 colors +white, rotation with variable direction and speed

• ◆ Gobo wheel 1:7 gobos +white, wheel rotation and shake(Static)

• ◆ Gobo wheel 2: 7 gobos +white, wheel rotation and shake(Rotation)

EFFECTS

• ◆Prisms: two Effect prism,one Rotation six prism,one Rotation five prism effect move ,Bi-directional rotation

CONTROL

• ◆ Channel: 6/18 DMX Channels USITT DMX-512

• ◆ Standard control signal: DMX512

• ◆ Control mode: international standard DMX512, automatic and master/ slave mode

HOUSING

• ◆ Surface: High temperature resistant plastic

• ◆ Color: black

• ◆ IP Rating: IP20

SOFTWARE FACILITIES

• ◆ Temperature protect function, when the internal
      Temperature is up to 40° and then the fans begin to work,
      when the internal temperature is up to 70°and the brightness reduce half.

HARDWARE FACILITES

      ◆ Ballast: Electrical

• ◆ LCD: LCD display

DIMMER/STROBE

• ◆ Dimmer: 0-100% linear adjustment

  ◆ Strobe: 0-20Hz

• ◆ Size: 485*355*390mm(LWH)/carton

• ◆ Net Weight: 12.5kg

• ◆ Gross Weight: 14kg
